iOS开发之XLForm的使用

发布日期:2018年08月22日    浏览次数:882

在iOS开发中,开发"表单"界面,字段稍微多一点的一般都用UITableView来做,而XLForm就是这样一个框架,它是创建动态表格视图最牛逼的iOS库, 用它实现表单功能,非常简单,省心省力。但是很可惜,搜索了很多文章都只是翻译官方文档,很多人在使用该库的时候可能都被官方文档带走远了,不知道如何具体使用。正好最近也要用到这个库,所以写个入门使用文章供大家参考。

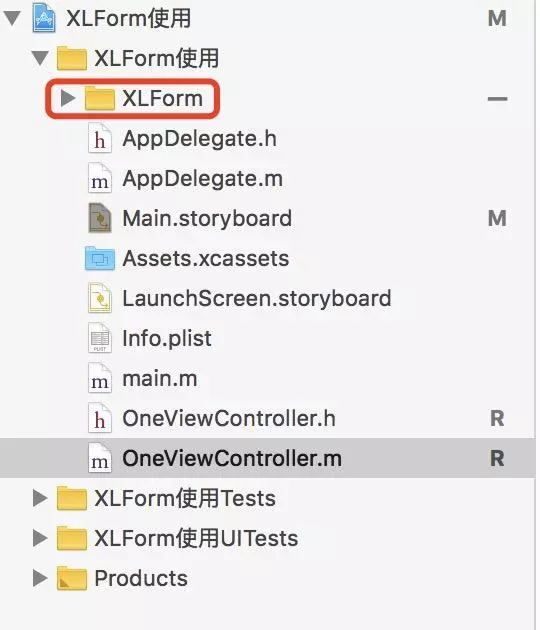

一、 导入项目


使用CocoaPods或者手动导入库文件,本人选择直接导入项目源文件的方式。

1_看图王.web



二、改造表单ViewController


让ViewController继承自XLFormViewController,并重写下面的两个方法

@interface OneViewController : XLFormViewController


@end


@implementation OneViewController


- (instancetype)initWithNibName:(NSString *)nibNameOrNil bundle:(NSBundle *)nibBundleOrNil {

    self = [super initWithNibName:nibNameOrNil bundle:nibBundleOrNil];

    if (self){

        [self initializeForm];

    }

    return self;

}


- (id)initWithCoder:(NSCoder *)aDecoder {

    self = [super initWithCoder:aDecoder];

    if (self){

        [self initializeForm];

    }

    return self;

}

@end


三、构造表单

- (void)initializeForm {


    // 设置是否显示Cell之间分界线

    //self.tableView.separatorStyle = UITableViewCellSeparatorStyleNone;

    // 设置Section的高度

    self.tableView.sectionHeaderHeight = 30;


    XLFormDescriptor * form;//form,一个表单只有一个

    XLFormSectionDescriptor * section;//section,一个表单可能有多个

    XLFormRowDescriptor * row; //row,每个section可能有多个row


    // Form

    form = [XLFormDescriptor formDescriptor];



    // First section

    section = [XLFormSectionDescriptor formSection];

    section.title = @"用户";

    [form addFormSection:section];

    // 普通文本

    row = [XLFormRowDescriptor formRowDescriptorWithTag:@"username" rowType:XLFormRowDescriptorTypeText];

    // 设置placeholder

    [row.cellConfig setObject:@"用户名" forKey:@"textField.placeholder"];

    // 设置文本颜色

    [row.cellConfig setObject:[UIColor redColor] forKey:@"textField.textColor"];

    [section addFormRow:row];

    // 密码

    row = [XLFormRowDescriptor formRowDescriptorWithTag:@"password" rowType:XLFormRowDescriptorTypePassword];

    // 设置placeholder的颜色

    NSAttributedString *attrString = [[NSAttributedString alloc] initWithString:@"密码" attributes:

                                      @{NSForegroundColorAttributeName:[UIColor greenColor],

                                        }];

    [row.cellConfig setObject:attrString forKey:@"textField.attributedPlaceholder"];

    [section addFormRow:row];




    // Second Section

    section = [XLFormSectionDescriptor formSection];

    section.title = @"日期";

    [form addFormSection:section];

    // 日期选择器

    row = [XLFormRowDescriptor formRowDescriptorWithTag:@"birthday" rowType:XLFormRowDescriptorTypeDate title:@"出生日期"];

    row.value = [NSDate dateWithTimeIntervalSinceNow:60*60*24];

    [section addFormRow:row];




     // Third Section

    section = [XLFormSectionDescriptor formSection];

    section.title = @"头像";

    [form addFormSection:section];

    // 图片选择

    row = [XLFormRowDescriptor formRowDescriptorWithTag:@"userpic" rowType:XLFormRowDescriptorTypeImage];

    [section addFormRow:row];




    // Fourth Section

    section = [XLFormSectionDescriptor formSection];

    section.title = @"选择器";

    [form addFormSection:section];

    // 选择器

    row = [XLFormRowDescriptor formRowDescriptorWithTag:@"sex" rowType:XLFormRowDescriptorTypeSelectorPush];

    row.noValueDisplayText = @"暂无";

    row.selectorTitle = @"性别选择";

    row.selectorOptions = @[@"男",@"女",@"其他"];

    row.title = @"性别";

    [row.cellConfigForSelector setObject:[UIColor redColor] forKey:@"textLabel.textColor"];

    [row.cellConfigForSelector setObject:[UIColor greenColor] forKey:@"detailTextLabel.textColor"];

    [section addFormRow:row];




    // Fifth Section

    section = [XLFormSectionDescriptor formSection];

    section.title = @"加固";

    [form addFormSection:section];

    // 开关

    row = [XLFormRowDescriptor formRowDescriptorWithTag:@"enforce" rowType:XLFormRowDescriptorTypeBooleanSwitch title:@"加固"];

    [section addFormRow:row];



    // Sixth Section

    section = [XLFormSectionDescriptor formSection];

    [form addFormSection:section];

    // 按钮

    row = [XLFormRowDescriptor formRowDescriptorWithTag:@"conform" rowType:XLFormRowDescriptorTypeButton];

    row.title = @"确定";

    [section addFormRow:row];



    self.form = form;

}


-(void)didSelectFormRow:(XLFormRowDescriptor *)formRow{


    // 判断是不是点击了确定按钮

    if([formRow.tag isEqualToString:@"conform"] && formRow.rowType == XLFormRowDescriptorTypeButton){


        //获取表单所有到的值

        NSDictionary *values =  [self formValues];


        NSLog(@"%@", values);


    }


    [super didSelectFormRow:formRow];


}


//重写改该方法 上面的方法就不会调用了

//-(void)tableView:(UITableView *)tableView didSelectRowAtIndexPath:(NSIndexPath *)indexPath{

//

//    NSLog(@"%s", __func__);

//

//}



@end

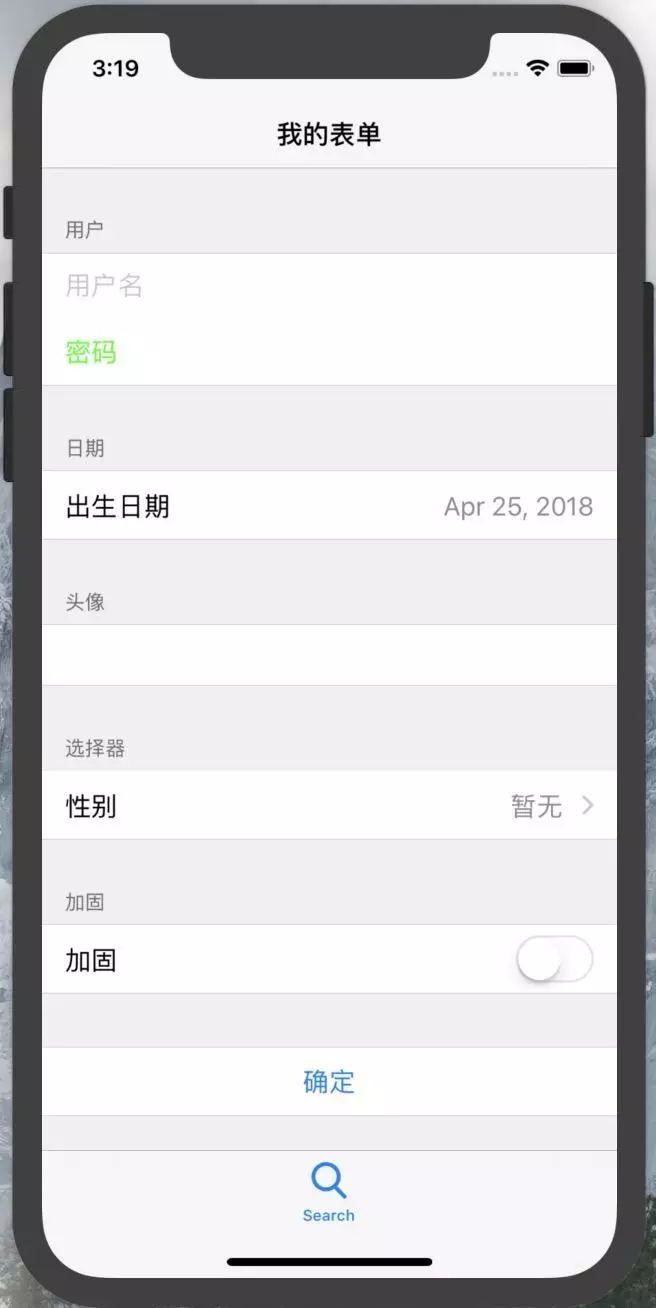

四、效果图

2_看图王.web



五、总结


前面两步是官方文档中可以找到的,也很简单,关键在于initializeForm方法中具体构造表单的过程,这里有必要强调几点:


1.XLFormViewController实现了UITableViewDataSource, UITableViewDelegate,并且持有一个UITableView,这个从该类的声明可以看出来,所以UITableView 、UITableViewDataSource, UITableViewDelegate中的方法都可以正常使用。

@interface XLFormViewController : UIViewController<UITableViewDataSource, UITableViewDelegate, XLFormDescriptorDelegate, UITextFieldDelegate, UITextViewDelegate, XLFormViewControllerDelegate>


2.XLForm将表单抽象为Form,Section,Row三个层次,分别对应三个类

XLFormDescriptor * form;//form,一个表单只有一个

XLFormSectionDescriptor * section;//section,一个表单可能有多个

XLFormRowDescriptor * row; //row,每个section可能有多个row


3.每个表单中的具体信息最后都落脚到XLFormRowDescriptor中,通过它可以配置不同样式的表单项,通过构造函数的rowType指定具体的表单类型,该框架提供了非常丰富的rowType,具体可以参考官方文档说明。


4.更细化配置表单项就需要借助于XLFormRowDescriptor中的属性进行配置,常用的有

@property (nonatomic, readonly, nonnull) NSMutableDictionary * cellConfig;

@property (nonatomic, readonly, nonnull) NSMutableDictionary * cellConfigForSelector;


这个配置的时候,往往有同学不知道具体如何才能设置属性,比如怎么设置表单输入框的placeholder?更进一步如何设置placeholder 的颜色。其实它用到了KVC,因为它们两个都是UITextField类中的属性,那么直接进入UITextField查找,发现如下信息:

@property(nullable, nonatomic,copy)   NSString               *placeholder;

@property(nullable, nonatomic,copy)   NSAttributedString     *attributedPlaceholder NS_AVAILABLE_IOS(6_0);


那么设置起来就是

 [row.cellConfig setObject:@"用户名" forKey:@"textField.placeholder"];

 [row.cellConfig setObject:attrString forKey:@"textField.attributedPlaceholder"];


注意这里的key的写法,就是KVC的写法。其他的属性依此类推。

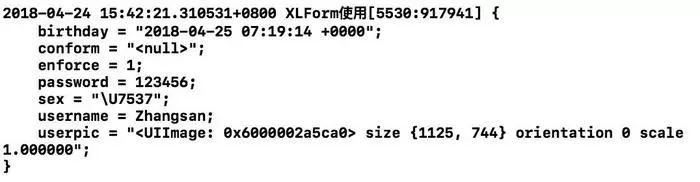

5.如何获取设置好的表单的值?其实非常简单,该框架提供一个方法formValues,它的返回类型是一个NSDictionary,其中key就是XLFormRowDescriptor设置时的Tag。可以直接在控制器中调用该方法获取表单值,上面的效果图设置后的表单信息如下:

3_看图王.web
